Overview

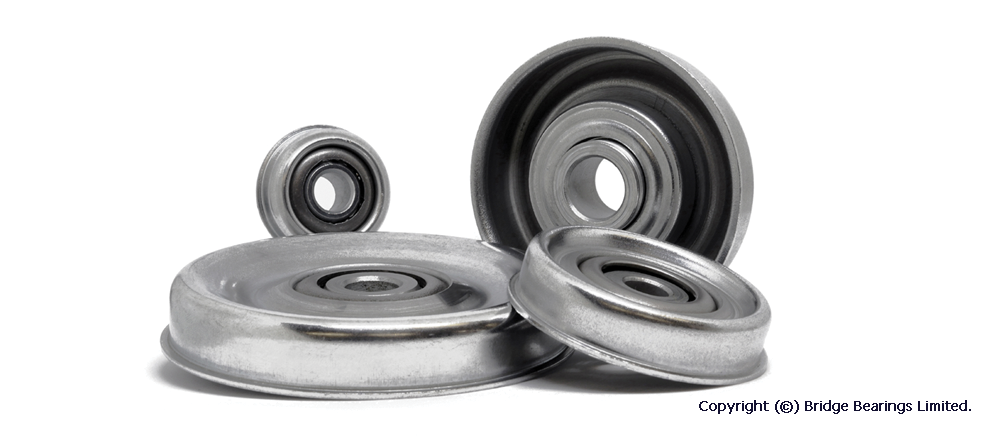

  • Semi-precision bearings incorporating turned steel inner race, pressed steel outer race and housing.
  • All ball contact surfaces are case hardened to ensure a long trouble free service.
  • Supplied lightly oiled or greased for gravity/powered applications.
  • All housings are designed to be a swaged fit with the flange registering against the tube. This process is usually carried out using a hydraulic press.
  • All products are zinc plated finish as standard.
  • Special bore sizes are available on request.
  • Designed to be free running.
  • The Medium Duty bearing range is fitted with a nylon cage to keep operating noise to a minimum.
  • The Heavy Duty (HD) bearing range offers a full compliment, crowded race construction for increased load carrying capabilities.

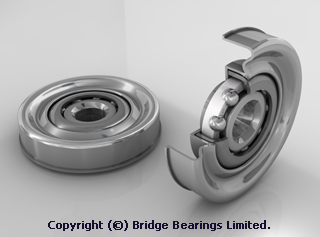

Medium Duty Caged BB

The medium duty bearing range is fitted with a nylon cage to keep operating noise to a minimum.

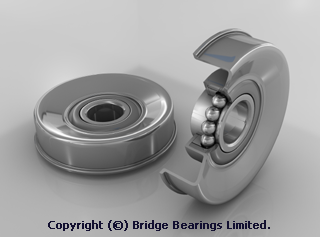

Heavy Duty BB (HD)

The heavy duty range offers a full compliment, crowded race construction for increased load carrying capabilities.

REFERENCE A
+/- 0.1mm
B
+/- 0.2mm
C
mm
D
+ 0.15 mm
LOAD
RATING Kg
TUBE
Ø x wall mm
BB 30 X 1.5 27.3 9.4 3.7 Ø6.2

Ø8.2

Ø10.2

30 30 X 1.5
BB 40 x 1.5 37.3 10 3.7 Ø8.2

Ø10.2

8.2 Hex

11.2 Hex

80 40 x 1.5
BB 50 x 1.5 47.3 11.5 3.7 Ø8.2

Ø10.2

Ø12.2

11.2 Hex

80 50 x 1.5
BB 50 x 1.5 HD 47.3 11.5 3.7 120 50 x 1.5
BB 60 x 1.5 HD 57.3 13.3 3.7 120 60 x 1.5
BB 60 x 2.0 HD 56.3 13.3 3.7 Ø10.2
Ø12.2

8.2 Hex

11.2 Hex

120 60 x 2.0
