Overview

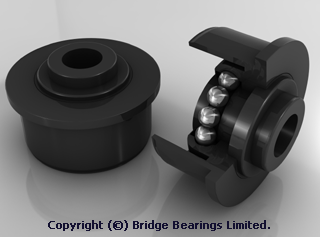

  • Plastic roller bearings are designed specifically for PVC tubes.  They are available for a wide variety of tube diameters and ideal for wash down applications.
  • Designed to be free running but offer quiet operation.
  • All with stainless steel balls.
  • All housing are designed to be an interference fit within PVC tubes.
  • Special bore sizes and colours available upon request.
REFERENCE A
+/- 0.1mm
B
+/- 0.2mm
C
mm
D
+ 0.15 mm
LOAD
RATING Kg
TUBE
Ø x wall mm
BBP 20 x 1.5 17.1 30 10 Ø6.2 5 20 x 1.5
BBP 30 x 1.8 26.5 24.7 7 Ø8.2 7 30 x 1.8/2
BBP40 x 2.3 35.5 26.8 10 Ø8.2 7 40 x 2.3
BBP50 x 2.8 44.8 20.7 7 Ø10.2
Ø12.2
11.2 Hex
10 50 x 2.8
