Overview

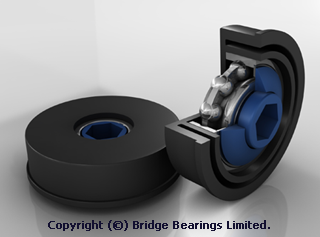

  • Conductive plastic housings dissipate static charges whilst keeping operating noise to a minimum and protecting against shock loads.
  • Precision bearings in plastic housings lend themselves to powered roller applications.
  • All products are fitted with high quality deep groove chrome steel ‘ZZ’ shielded precision bearings.  2RS stainless steel bearings are available on request.
  • Personalised branding available (when supplied as a complete roller).
REFERENCE A
+/- 0.1mm
B
+/- 0.2mm
C
mm
D
+ 0.15 mm
LOAD
RATING Kg
TUBE
Ø x wall mm
6002ZZ + PREC 47 46.1 14.4 6 Ø8,
8 Hex,
Ø10,
Ø11,
11 Hex,
Ø12,
Ø15
50 50 x 1.5
6002-2RS + PREC 47
STAINLESS STEEL
46.1 14.4 6 50 50 x 1.5
6002ZZ + PREC 37 36.1 14.4 6 50 40 x 1.5
6002ZZ + PREC 56 55.1 14.4 6 50 60 x 2
  • One piece plastic insert fitted as standard.
  • Ø15mm has no shield or insert.
